七、SpringBoot的请求处理（源码分析）

# 26、请求处理-【源码分析】-Rest映射及源码解析

# 请求映射

  • @xxxMapping;

    • @GetMapping
    • @PostMapping
    • @PutMapping
    • @DeleteMapping

  • Rest风格支持（使用HTTP请求方式动词来表示对资源的操作）

    • 以前：
      • /getUser 获取用户
      • /deleteUser 删除用户
      • /editUser 修改用户
      • /saveUser保存用户
    • 现在： /user
      • GET-获取用户
      • DELETE-删除用户
      • PUT-修改用户
      • POST-保存用户
    • 核心Filter；HiddenHttpMethodFilter

  • 用法

    • 开启页面表单的Rest功能
    • 页面 form的属性method=post，隐藏域 _method=put、delete等（如果直接get或post，无需隐藏域）
    • 编写请求映射
spring:
  mvc:
    hiddenmethod:
      filter:
        enabled: true   #开启页面表单的Rest功能
1
2
3
4
5
<form action="/user" method="get">
    <input value="REST-GET提交" type="submit" />
</form>

<form action="/user" method="post">
    <input value="REST-POST提交" type="submit" />
</form>

<form action="/user" method="post">
    <input name="_method" type="hidden" value="DELETE"/>
    <input value="REST-DELETE 提交" type="submit"/>
</form>

<form action="/user" method="post">
    <input name="_method" type="hidden" value="PUT" />
    <input value="REST-PUT提交"type="submit" />
<form>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
@GetMapping("/user")
//@RequestMapping(value = "/user",method = RequestMethod.GET)
public String getUser(){
    return "GET-张三";
}

@PostMapping("/user")
//@RequestMapping(value = "/user",method = RequestMethod.POST)
public String saveUser(){
    return "POST-张三";
}

@PutMapping("/user")
//@RequestMapping(value = "/user",method = RequestMethod.PUT)
public String putUser(){
    return "PUT-张三";
}

@DeleteMapping("/user")
//@RequestMapping(value = "/user",method = RequestMethod.DELETE)
public String deleteUser(){
    return "DELETE-张三";
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
  • Rest原理（表单提交要使用REST的时候）
    • 表单提交会带上\_method=PUT
    • 请求过来被HiddenHttpMethodFilter拦截
      • 请求是否正常，并且是POST
        • 获取到\_method的值。
        • 兼容以下请求；PUT.DELETE.PATCH
        • 原生request（post），包装模式requestWrapper重写了getMethod方法，返回的是传入的值，即PUT、DELETE、PATCH等。
        • 过滤器链放行的时候用wrapper。以后的方法调用getMethod是调用requestWrapper的，这样就实现了同一url的post请求匹配不同的控制器方法。
public class HiddenHttpMethodFilter extends OncePerRequestFilter {

	private static final List<String> ALLOWED_METHODS =
			Collections.unmodifiableList(Arrays.asList(HttpMethod.PUT.name(),
					HttpMethod.DELETE.name(), HttpMethod.PATCH.name()));

	/** Default method parameter: {@code _method}. */
	public static final String DEFAULT_METHOD_PARAM = "_method";

	private String methodParam = DEFAULT_METHOD_PARAM;


	/**
	 * Set the parameter name to look for HTTP methods.
	 * @see #DEFAULT_METHOD_PARAM
	 */
	public void setMethodParam(String methodParam) {
		Assert.hasText(methodParam, "'methodParam' must not be empty");
		this.methodParam = methodParam;
	}

	@Override
	protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain)
			throws ServletException, IOException {

		HttpServletRequest requestToUse = request;

		if ("POST".equals(request.getMethod()) && request.getAttribute(WebUtils.ERROR_EXCEPTION_ATTRIBUTE) == null) {
			String paramValue = request.getParameter(this.methodParam);
			if (StringUtils.hasLength(paramValue)) {
				String method = paramValue.toUpperCase(Locale.ENGLISH);
				if (ALLOWED_METHODS.contains(method)) {
					requestToUse = new HttpMethodRequestWrapper(request, method);
				}
			}
		}

		filterChain.doFilter(requestToUse, response);
	}


	/**
	 * Simple {@link HttpServletRequest} wrapper that returns the supplied method for
	 * {@link HttpServletRequest#getMethod()}.
	 */
	private static class HttpMethodRequestWrapper extends HttpServletRequestWrapper {

		private final String method;

		public HttpMethodRequestWrapper(HttpServletRequest request, String method) {
			super(request);
			this.method = method;
		}

		@Override
		public String getMethod() {
			return this.method;
		}
	}

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
  • Rest使用客户端工具。
    • 如PostMan可直接发送put、delete等方式请求。

# 27、请求处理-【源码分析】-怎么改变默认的_method

@Configuration(proxyBeanMethods = false)
@ConditionalOnWebApplication(type = Type.SERVLET)
@ConditionalOnClass({ Servlet.class, DispatcherServlet.class, WebMvcConfigurer.class })
@ConditionalOnMissingBean(WebMvcConfigurationSupport.class)
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE + 10)
@AutoConfigureAfter({ DispatcherServletAutoConfiguration.class, TaskExecutionAutoConfiguration.class,
		ValidationAutoConfiguration.class })
public class WebMvcAutoConfiguration {

    ...

    @Bean
    @ConditionalOnMissingBean(HiddenHttpMethodFilter.class)
    @ConditionalOnProperty(prefix = "spring.mvc.hiddenmethod.filter", name = "enabled", matchIfMissing = false)
    public OrderedHiddenHttpMethodFilter hiddenHttpMethodFilter() {
        return new OrderedHiddenHttpMethodFilter();
    }

    ...
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

@ConditionalOnMissingBean(HiddenHttpMethodFilter.class)意味着在没有HiddenHttpMethodFilter时，才执行hiddenHttpMethodFilter()。因此，我们可以自定义filter，改变默认的\_method。例如：

@Configuration(proxyBeanMethods = false)
public class WebConfig{
    //自定义filter
    @Bean
    public HiddenHttpMethodFilter hiddenHttpMethodFilter(){
        HiddenHttpMethodFilter methodFilter = new HiddenHttpMethodFilter();
        methodFilter.setMethodParam("_m");
        return methodFilter;
    }
}
1
2
3
4
5
6
7
8
9
10

将\_method改成_m。

<form action="/user" method="post">
    <input name="_m" type="hidden" value="DELETE"/>
    <input value="REST-DELETE 提交" type="submit"/>
</form>
1
2
3
4

# 28、请求处理-【源码分析】-请求映射原理

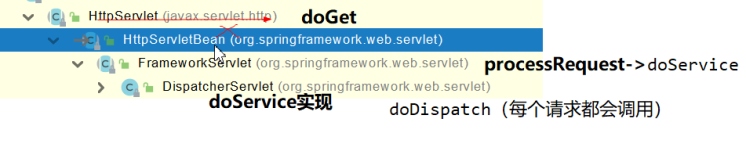

20210205005703527 SpringMVC功能分析都从 org.springframework.web.servlet.DispatcherServlet -> doDispatch()

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
    HttpServletRequest processedRequest = request;
    HandlerExecutionChain mappedHandler = null;
    boolean multipartRequestParsed = false;

    WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

    try {
        ModelAndView mv = null;
        Exception dispatchException = null;

        try {
            processedRequest = checkMultipart(request);
            multipartRequestParsed = (processedRequest != request);

            // 找到当前请求使用哪个Handler（Controller的方法）处理
            mappedHandler = getHandler(processedRequest);

            //HandlerMapping：处理器映射。/xxx->>xxxx
    ...
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

getHandler()方法如下：

@Nullable
protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
    if (this.handlerMappings != null) {
        for (HandlerMapping mapping : this.handlerMappings) {
            // 当前HandlerMapping找不到handler就使用下一个HandlerMapping
            HandlerExecutionChain handler = mapping.getHandler(request);
            if (handler != null) {
                return handler;
            }
        }
    }
    return null;
}
1
2
3
4
5
6
7
8
9
10
11
12
13

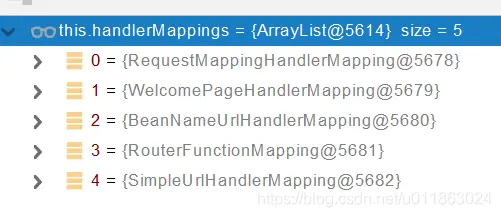

this.handlerMappings在Debug模式下展现的内容：

20210205005802305 其中，保存了所有@RequestMapping 和handler的映射规则。

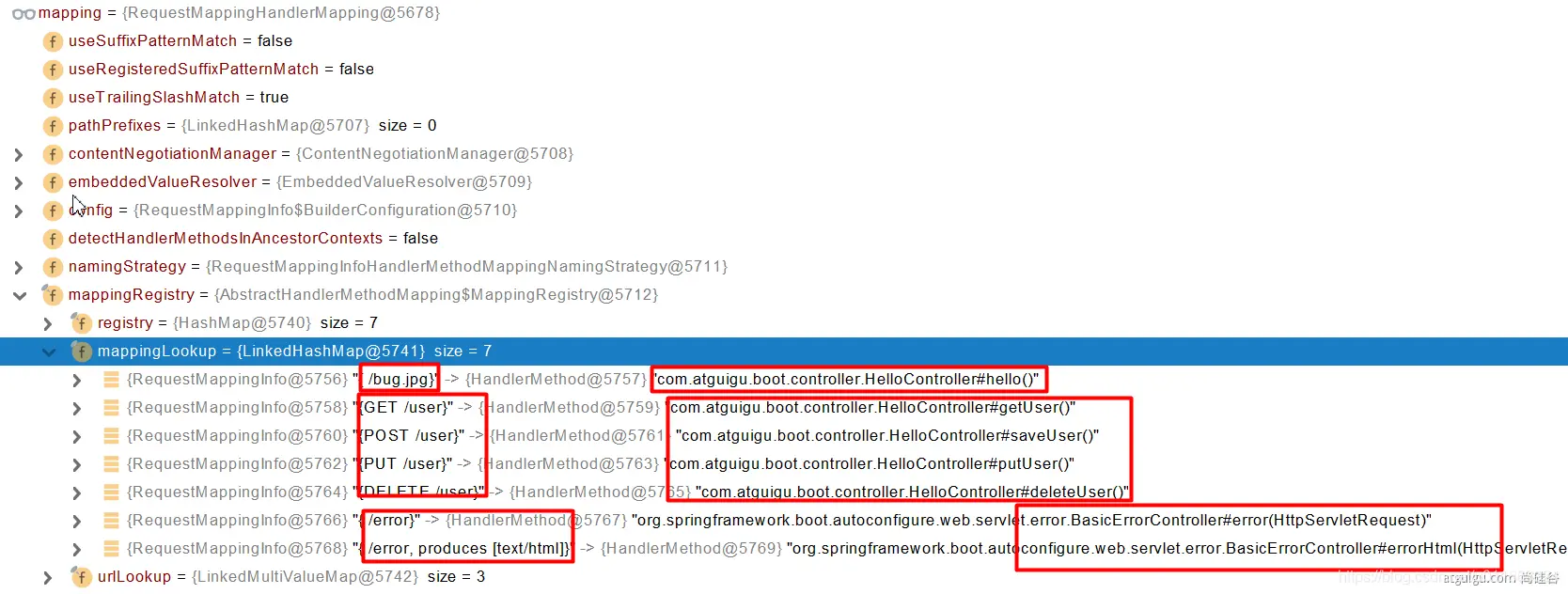

20210205005926474

所有的请求映射都在HandlerMapping中（系统启动会扫描所有的RequestMapping注解，并建立映射关系）：

  • SpringBoot自动配置欢迎页的 WelcomePageHandlerMapping 。访问 /能访问到index.html；

  • SpringBoot自动配置了默认 的 RequestMappingHandlerMapping

  • 请求进来，挨个尝试所有的HandlerMapping看是否有请求信息。

    • 如果有就找到这个请求对应的handler
    • 如果没有就是下一个 HandlerMapping

  • 我们需要一些自定义的映射处理，我们也可以自己给容器中放HandlerMapping。自定义 HandlerMapping

IDEA快捷键：

  • Ctrl + Alt + U : 以UML的类图展现类有哪些继承类，派生类以及实现哪些接口。
  • Crtl + Alt + Shift + U : 同上，区别在于上条快捷键结果在新页展现，而本条快捷键结果在弹窗展现。
  • Ctrl + H : 以树形方式展现类层次结构图。

# 29、请求处理-常用参数注解使用

注解：

  • @PathVariable 路径变量
  • @RequestHeader 获取请求头
  • @RequestParam 获取请求参数（指问号后的参数，url?a=1&b=2）
  • @CookieValue 获取Cookie值
  • @RequestAttribute 获取request域属性，用于页面转发
  • @RequestBody 获取请求体[POST]
  • @MatrixVariable 矩阵变量
  • @ModelAttribute

使用用例：

使用不带注解值的Map会存储所有变量的key-value，且这个Map必须是<String, String>的

使用@CookieValue注解时可以直接将值存入Cookie对象中

@RestController
public class ParameterTestController {


    //  car/2/owner/zhangsan
    @GetMapping("/car/{id}/owner/{username}")
    public Map<String,Object> getCar(@PathVariable("id") Integer id,
                                     @PathVariable("username") String name,
                                     @PathVariable Map<String,String> pv,
                                     @RequestHeader("User-Agent") String userAgent,
                                     @RequestHeader Map<String,String> header,
                                     @RequestParam("age") Integer age,
                                     @RequestParam("inters") List<String> inters,
                                     @RequestParam Map<String,String> params,
                                     @CookieValue("_ga") String _ga,
                                     @CookieValue("_ga") Cookie cookie){

        Map<String,Object> map = new HashMap<>();

//        map.put("id",id);
//        map.put("name",name);
//        map.put("pv",pv);
//        map.put("userAgent",userAgent);
//        map.put("headers",header);
        map.put("age",age);
        map.put("inters",inters);
        map.put("params",params);
        map.put("_ga",_ga);
        System.out.println(cookie.getName()+"===>"+cookie.getValue());
        return map;
    }


    //直接获取表单的所有信息并以字符串保存
    @PostMapping("/save")
    public Map postMethod(@RequestBody String content){
        Map<String,Object> map = new HashMap<>();
        map.put("content",content);
        return map;
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

# 30、请求处理-@RequestAttribute

用例：

两种方式能够拿到请求域中的数据：一种是通过@RequestAttribute，另一种是使用HttpServletRequest对象获取

@Controller
public class RequestController {

    @GetMapping("/goto")
    public String goToPage(HttpServletRequest request){

        request.setAttribute("msg","成功了...");
        request.setAttribute("code",200);
        return "forward:/success";  //转发到  /success请求
    }

    @GetMapping("/params")
    public String testParam(Map<String,Object> map,
                            Model model,
                            HttpServletRequest request,
                            HttpServletResponse response){
        map.put("hello","world666");
        model.addAttribute("world","hello666");
        request.setAttribute("message","HelloWorld");

        Cookie cookie = new Cookie("c1","v1");
        response.addCookie(cookie);
        return "forward:/success";
    }

    ///<-----------------主角@RequestAttribute在这个方法
    @ResponseBody
    @GetMapping("/success")
    public Map success(@RequestAttribute(value = "msg",required = false) String msg,
                       @RequestAttribute(value = "code",required = false)Integer code,
                       HttpServletRequest request){
        Object msg1 = request.getAttribute("msg");

        Map<String,Object> map = new HashMap<>();
        Object hello = request.getAttribute("hello");
        Object world = request.getAttribute("world");
        Object message = request.getAttribute("message");

        map.put("reqMethod_msg",msg1);
        map.put("annotation_msg",msg);
        map.put("hello",hello);
        map.put("world",world);
        map.put("message",message);

        return map;
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

# 31、请求处理-@MatrixVariable与UrlPathHelper

能够解决cookie被禁用的问题，在这里面保存jsessionid的值，保证session的正常使用

  1. 语法： 请求路径：

    /cars/sell;low=34;brand=byd,audi,yd

    /cars/sell;low=34;brand=byd;brand=audi;brand=yd

    /boss/1;age=20/2;age=10

  2. SpringBoot默认是禁用了矩阵变量的功能

    • 手动开启：原理。对于路径的处理。UrlPathHelper的removeSemicolonContent设置为false，让其支持矩阵变量的。

  3. 矩阵变量必须有url路径变量才能被解析

    且路径变量存储的值为分号之前的部分，例如cars/sell;low=34;brand=byd,audi,yd在/cars/{path}中为path路径变量注入的值为sell

    若一个url中同时有两个路径变量，则需要在@MatrixVariable注解中加入pathVar说明具体是哪个路径变量中的

手动开启矩阵变量：

  • 实现WebMvcConfigurer接口：
@Configuration(proxyBeanMethods = false)
public class WebConfig implements WebMvcConfigurer {
    @Override
    public void configurePathMatch(PathMatchConfigurer configurer) {

        UrlPathHelper urlPathHelper = new UrlPathHelper();
        // 不移除；后面的内容。矩阵变量功能就可以生效
        urlPathHelper.setRemoveSemicolonContent(false);
        configurer.setUrlPathHelper(urlPathHelper);
    }
}
1
2
3
4
5
6
7
8
9
10
11
  • 创建返回WebMvcConfigurerBean：
@Configuration(proxyBeanMethods = false)
public class WebConfig{
    @Bean
    public WebMvcConfigurer webMvcConfigurer(){
        return new WebMvcConfigurer() {
                        @Override
            public void configurePathMatch(PathMatchConfigurer configurer) {
                UrlPathHelper urlPathHelper = new UrlPathHelper();
                // 不移除；后面的内容。矩阵变量功能就可以生效
                urlPathHelper.setRemoveSemicolonContent(false);
                configurer.setUrlPathHelper(urlPathHelper);
            }
        }
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

@MatrixVariable的用例

@RestController
public class ParameterTestController {

    ///cars/sell;low=34;brand=byd,audi,yd
    @GetMapping("/cars/{path}")
    public Map carsSell(@MatrixVariable("low") Integer low,
                        @MatrixVariable("brand") List<String> brand,
                        @PathVariable("path") String path){
        Map<String,Object> map = new HashMap<>();

        map.put("low",low);
        map.put("brand",brand);
        map.put("path",path);
        return map;
    }

    // /boss/1;age=20/2;age=10

    @GetMapping("/boss/{bossId}/{empId}")
    public Map boss(@MatrixVariable(value = "age",pathVar = "bossId") Integer bossAge,
                    @MatrixVariable(value = "age",pathVar = "empId") Integer empAge){
        Map<String,Object> map = new HashMap<>();

        map.put("bossAge",bossAge);
        map.put("empAge",empAge);
        return map;

    }

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

快捷键：ctrl+f12: 查看当前类的所有方法

# 32、请求处理-【源码分析】-各种类型参数解析原理

这要从DispatcherServlet开始说起：

public class DispatcherServlet extends FrameworkServlet {

    protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
        HttpServletRequest processedRequest = request;
        HandlerExecutionChain mappedHandler = null;
        boolean multipartRequestParsed = false;

        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

        try {
            ModelAndView mv = null;
            Exception dispatchException = null;

            try {
                processedRequest = checkMultipart(request);
                multipartRequestParsed = (processedRequest != request);

                // Determine handler for the current request.
                mappedHandler = getHandler(processedRequest);
                if (mappedHandler == null) {
                    noHandlerFound(processedRequest, response);
                    return;
                }

                // Determine handler adapter for the current request.
                HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
                ...
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
  • HandlerMapping中找到能处理请求的Handler（Controller.method()）。
  • 为当前Handler 找一个适配器 HandlerAdapter，用的最多的是RequestMappingHandlerAdapter。
  • 适配器执行目标方法并确定方法参数的每一个值。

# HandlerAdapter

默认会加载所有HandlerAdapter

public class DispatcherServlet extends FrameworkServlet {

    /** Detect all HandlerAdapters or just expect "handlerAdapter" bean?. */
    private boolean detectAllHandlerAdapters = true;

    ...

    private void initHandlerAdapters(ApplicationContext context) {
        this.handlerAdapters = null;

        if (this.detectAllHandlerAdapters) {
            // Find all HandlerAdapters in the ApplicationContext, including ancestor contexts.
            Map<String, HandlerAdapter> matchingBeans =
                BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerAdapter.class, true, false);
            if (!matchingBeans.isEmpty()) {
                this.handlerAdapters = new ArrayList<>(matchingBeans.values());
                // We keep HandlerAdapters in sorted order.
                AnnotationAwareOrderComparator.sort(this.handlerAdapters);
            }
        }
     ...
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

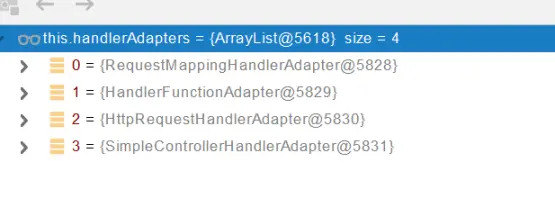

有这些HandlerAdapter：

20210205010047654

  1. 支持方法上标注@RequestMapping
  2. 支持函数式编程的
  3. ...
  4. ...

# 执行目标方法

public class DispatcherServlet extends FrameworkServlet {

	protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
        ModelAndView mv = null;

        ...

        // Determine handler for the current request.确定当前请求的handler（控制器方法）
        mappedHandler = getHandler(processedRequest);
        if (mappedHandler == null) {
            noHandlerFound(processedRequest, response);
            return;
        }

        // Determine handler adapter for the current request.确定当前请求的handler adapter
        HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

        ...
		//本节重点
        // Actually invoke the handler.
        mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

HandlerAdapter接口实现类RequestMappingHandlerAdapter（主要用来处理@RequestMapping）

public class RequestMappingHandlerAdapter extends AbstractHandlerMethodAdapter
		implements BeanFactoryAware, InitializingBean {

    ...

    //AbstractHandlerMethodAdapter类的方法，RequestMappingHandlerAdapter继承AbstractHandlerMethodAdapter
	public final ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler)
        throws Exception {

        return handleInternal(request, response, (HandlerMethod) handler);
    }

	@Override
	protected ModelAndView handleInternal(HttpServletRequest request,
			HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
    	ModelAndView mav;
        //handleInternal的核心，执行handler的方法
        mav = invokeHandlerMethod(request, response, handlerMethod);//解释看下节
		//...
		return mav;
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

# 参数解析器

确定将要执行的目标方法的每一个参数的值是什么;

SpringMVC目标方法能写多少种参数类型。取决于参数解析器argumentResolvers。

@Nullable
protected ModelAndView invokeHandlerMethod(HttpServletRequest request,
                                           HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

    ServletWebRequest webRequest = new ServletWebRequest(request, response);
    try {
        WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);
        ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);

        ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);
        if (this.argumentResolvers != null) {//<-----关注点
            invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
        }

        ...
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

this.argumentResolvers在afterPropertiesSet()方法内初始化

public class RequestMappingHandlerAdapter extends AbstractHandlerMethodAdapter
		implements BeanFactoryAware, InitializingBean {

    @Nullable
    // 保存所有的HandlerMethodArgumentResolver
    private HandlerMethodArgumentResolverComposite argumentResolvers;

    @Override
    public void afterPropertiesSet() {
        ...
    	if (this.argumentResolvers == null) {//初始化argumentResolvers
        	List<HandlerMethodArgumentResolver> resolvers = getDefaultArgumentResolvers();
            this.argumentResolvers = new HandlerMethodArgumentResolverComposite().addResolvers(resolvers);
        }
        ...
    }

    //初始化了一堆的实现HandlerMethodArgumentResolver接口的
	private List<HandlerMethodArgumentResolver> getDefaultArgumentResolvers() {
		List<HandlerMethodArgumentResolver> resolvers = new ArrayList<>(30);

		// Annotation-based argument resolution
		resolvers.add(new RequestParamMethodArgumentResolver(getBeanFactory(), false));
		resolvers.add(new RequestParamMapMethodArgumentResolver());
		resolvers.add(new PathVariableMethodArgumentResolver());
		resolvers.add(new PathVariableMapMethodArgumentResolver());
		resolvers.add(new MatrixVariableMethodArgumentResolver());
		resolvers.add(new MatrixVariableMapMethodArgumentResolver());
		resolvers.add(new ServletModelAttributeMethodProcessor(false));
		resolvers.add(new RequestResponseBodyMethodProcessor(getMessageConverters(), this.requestResponseBodyAdvice));
		resolvers.add(new RequestPartMethodArgumentResolver(getMessageConverters(), this.requestResponseBodyAdvice));
		resolvers.add(new RequestHeaderMethodArgumentResolver(getBeanFactory()));
		resolvers.add(new RequestHeaderMapMethodArgumentResolver());
		resolvers.add(new ServletCookieValueMethodArgumentResolver(getBeanFactory()));
		resolvers.add(new ExpressionValueMethodArgumentResolver(getBeanFactory()));
		resolvers.add(new SessionAttributeMethodArgumentResolver());
		resolvers.add(new RequestAttributeMethodArgumentResolver());

		// Type-based argument resolution
		resolvers.add(new ServletRequestMethodArgumentResolver());
		resolvers.add(new ServletResponseMethodArgumentResolver());
		resolvers.add(new HttpEntityMethodProcessor(getMessageConverters(), this.requestResponseBodyAdvice));
		resolvers.add(new RedirectAttributesMethodArgumentResolver());
		resolvers.add(new ModelMethodProcessor());
		resolvers.add(new MapMethodProcessor());
		resolvers.add(new ErrorsMethodArgumentResolver());
		resolvers.add(new SessionStatusMethodArgumentResolver());
		resolvers.add(new UriComponentsBuilderMethodArgumentResolver());
		if (KotlinDetector.isKotlinPresent()) {
			resolvers.add(new ContinuationHandlerMethodArgumentResolver());
		}

		// Custom arguments
		if (getCustomArgumentResolvers() != null) {
			resolvers.addAll(getCustomArgumentResolvers());
		}

		// Catch-all
		resolvers.add(new PrincipalMethodArgumentResolver());
		resolvers.add(new RequestParamMethodArgumentResolver(getBeanFactory(), true));
		resolvers.add(new ServletModelAttributeMethodProcessor(true));

		return resolvers;
	}

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66

HandlerMethodArgumentResolverComposite类如下：（众多参数解析器argumentResolvers的包装类）。

public class HandlerMethodArgumentResolverComposite implements HandlerMethodArgumentResolver {

	private final List<HandlerMethodArgumentResolver> argumentResolvers = new ArrayList<>();

    ...

	public HandlerMethodArgumentResolverComposite addResolvers(
			@Nullable HandlerMethodArgumentResolver... resolvers) {

		if (resolvers != null) {
			Collections.addAll(this.argumentResolvers, resolvers);
		}
		return this;
	}

    ...
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

我们看看HandlerMethodArgumentResolver的源码：

public interface HandlerMethodArgumentResolver {

    //当前解析器是否支持解析这种参数
	boolean supportsParameter(MethodParameter parameter);

	@Nullable//如果支持，就调用 resolveArgument
	Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
			NativeWebRequest webRequest, @Nullable WebDataBinderFactory binderFactory) throws Exception;

}
1
2
3
4
5
6
7
8
9
10
11

# 返回值处理器

ValueHandler

@Nullable
protected ModelAndView invokeHandlerMethod(HttpServletRequest request,
                                           HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

    ServletWebRequest webRequest = new ServletWebRequest(request, response);
    try {
        WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);
        ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);

        ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);
        if (this.argumentResolvers != null) {
            invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
        }
        if (this.returnValueHandlers != null) {//<---关注点
            invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);
        }
     ...
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

this.returnValueHandlers在afterPropertiesSet()方法内初始化

public class RequestMappingHandlerAdapter extends AbstractHandlerMethodAdapter
		implements BeanFactoryAware, InitializingBean {

	@Nullable
	private HandlerMethodReturnValueHandlerComposite returnValueHandlers;

	@Override
	public void afterPropertiesSet() {

        ...

		if (this.returnValueHandlers == null) {
			List<HandlerMethodReturnValueHandler> handlers = getDefaultReturnValueHandlers();
			this.returnValueHandlers = new HandlerMethodReturnValueHandlerComposite().addHandlers(handlers);
		}
	}

    //初始化了一堆的实现HandlerMethodReturnValueHandler接口的
    private List<HandlerMethodReturnValueHandler> getDefaultReturnValueHandlers() {
		List<HandlerMethodReturnValueHandler> handlers = new ArrayList<>(20);

		// Single-purpose return value types
		handlers.add(new ModelAndViewMethodReturnValueHandler());
		handlers.add(new ModelMethodProcessor());
		handlers.add(new ViewMethodReturnValueHandler());
		handlers.add(new ResponseBodyEmitterReturnValueHandler(getMessageConverters(),
				this.reactiveAdapterRegistry, this.taskExecutor, this.contentNegotiationManager));
		handlers.add(new StreamingResponseBodyReturnValueHandler());
		handlers.add(new HttpEntityMethodProcessor(getMessageConverters(),
				this.contentNegotiationManager, this.requestResponseBodyAdvice));
		handlers.add(new HttpHeadersReturnValueHandler());
		handlers.add(new CallableMethodReturnValueHandler());
		handlers.add(new DeferredResultMethodReturnValueHandler());
		handlers.add(new AsyncTaskMethodReturnValueHandler(this.beanFactory));

		// Annotation-based return value types
		handlers.add(new ServletModelAttributeMethodProcessor(false));
		handlers.add(new RequestResponseBodyMethodProcessor(getMessageConverters(),
				this.contentNegotiationManager, this.requestResponseBodyAdvice));

		// Multi-purpose return value types
		handlers.add(new ViewNameMethodReturnValueHandler());
		handlers.add(new MapMethodProcessor());

		// Custom return value types
		if (getCustomReturnValueHandlers() != null) {
			handlers.addAll(getCustomReturnValueHandlers());
		}

		// Catch-all
		if (!CollectionUtils.isEmpty(getModelAndViewResolvers())) {
			handlers.add(new ModelAndViewResolverMethodReturnValueHandler(getModelAndViewResolvers()));
		}
		else {
			handlers.add(new ServletModelAttributeMethodProcessor(true));
		}

		return handlers;
	}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

HandlerMethodReturnValueHandlerComposite类如下：

public class HandlerMethodReturnValueHandlerComposite implements HandlerMethodReturnValueHandler {

	private final List<HandlerMethodReturnValueHandler> returnValueHandlers = new ArrayList<>();

    ...

	public HandlerMethodReturnValueHandlerComposite addHandlers(
			@Nullable List<? extends HandlerMethodReturnValueHandler> handlers) {

		if (handlers != null) {
			this.returnValueHandlers.addAll(handlers);
		}
		return this;
	}

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

HandlerMethodReturnValueHandler接口：

public interface HandlerMethodReturnValueHandler {

	boolean supportsReturnType(MethodParameter returnType);

	void handleReturnValue(@Nullable Object returnValue, MethodParameter returnType,
			ModelAndViewContainer mavContainer, NativeWebRequest webRequest) throws Exception;

}
1
2
3
4
5
6
7
8

# 回顾执行目标方法

DispatchServlet中的doDispatch()方法中调用handleradapter执行handle()方法

public class DispatcherServlet extends FrameworkServlet {
    ...
	protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
        ModelAndView mv = null;
		...
        mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
1
2
3
4
5
6

RequestMappingHandlerAdapter的handle()方法：

public class RequestMappingHandlerAdapter extends AbstractHandlerMethodAdapter
		implements BeanFactoryAware, InitializingBean {

    ...

    //AbstractHandlerMethodAdapter类的方法，RequestMappingHandlerAdapter继承AbstractHandlerMethodAdapter
	public final ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler)
        throws Exception {
		// 跳转进这个方法中
        return handleInternal(request, response, (HandlerMethod) handler);
    }

	@Override
	protected ModelAndView handleInternal(HttpServletRequest request,
			HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
    	ModelAndView mav;
        //handleInternal的核心
        mav = invokeHandlerMethod(request, response, handlerMethod);//解释看下节
		//...
		return mav;
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

RequestMappingHandlerAdapter的invokeHandlerMethod()方法：

public class RequestMappingHandlerAdapter extends AbstractHandlerMethodAdapter
		implements BeanFactoryAware, InitializingBean {

	protected ModelAndView invokeHandlerMethod(HttpServletRequest request,
			HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

		ServletWebRequest webRequest = new ServletWebRequest(request, response);
		try {
			...

            ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);
            // 设置参数解析器
			if (this.argumentResolvers != null) {
				invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
			}
            // 设置返回值解析器
			if (this.returnValueHandlers != null) {
				invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);
			}
			...

            //关注点：执行目标方法
			invocableMethod.invokeAndHandle(webRequest, mavContainer);
			if (asyncManager.isConcurrentHandlingStarted()) {
				return null;
			}

			return getModelAndView(mavContainer, modelFactory, webRequest);
		}
		finally {
			webRequest.requestCompleted();
		}
	}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

invokeAndHandle()方法如下：

public class ServletInvocableHandlerMethod extends InvocableHandlerMethod {

	public void invokeAndHandle(ServletWebRequest webRequest, ModelAndViewContainer mavContainer,
			Object... providedArgs) throws Exception {

		Object returnValue = invokeForRequest(webRequest, mavContainer, providedArgs);

        ...

		try {
            //returnValue存储起来
			this.returnValueHandlers.handleReturnValue(
					returnValue, getReturnValueType(returnValue), mavContainer, webRequest);
		}
		catch (Exception ex) {
			...
		}
	}

    @Nullable//InvocableHandlerMethod类的，ServletInvocableHandlerMethod类继承InvocableHandlerMethod类
	public Object invokeForRequest(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
			Object... providedArgs) throws Exception {

        ////获取方法的参数值
		Object[] args = getMethodArgumentValues(request, mavContainer, providedArgs);

        ...
       //在doInvoke()方法中实际执行目标方法
		return doInvoke(args);
	}

    @Nullable
	protected Object doInvoke(Object... args) throws Exception {
		Method method = getBridgedMethod();//@RequestMapping的方法
		ReflectionUtils.makeAccessible(method);
		try {
			if (KotlinDetector.isSuspendingFunction(method)) {
				return CoroutinesUtils.invokeSuspendingFunction(method, getBean(), args);
			}
            //通过反射调用
			return method.invoke(getBean(), args);//getBean()指@RequestMapping的方法所在类的对象。
		}
		catch (IllegalArgumentException ex) {
			...
		}
		catch (InvocationTargetException ex) {
			...
		}
	}

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

# 如何确定目标方法每一个参数的值

重点分析ServletInvocableHandlerMethod的getMethodArgumentValues方法

public class ServletInvocableHandlerMethod extends InvocableHandlerMethod {
    ...

	@Nullable//InvocableHandlerMethod类的，ServletInvocableHandlerMethod类继承InvocableHandlerMethod类
	public Object invokeForRequest(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
			Object... providedArgs) throws Exception {

        ////获取方法的参数值
		Object[] args = getMethodArgumentValues(request, mavContainer, providedArgs);

        ...

		return doInvoke(args);
	}

    //本节重点，获取方法的参数值
	protected Object[] getMethodArgumentValues(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
			Object... providedArgs) throws Exception {

		MethodParameter[] parameters = getMethodParameters();
		if (ObjectUtils.isEmpty(parameters)) {
			return EMPTY_ARGS;
		}

        // 建立一个数组保存参数值，即写在方法里的形参，一个个去解析赋值
		Object[] args = new Object[parameters.length];
		for (int i = 0; i < parameters.length; i++) {
			MethodParameter parameter = parameters[i];
			parameter.initParameterNameDiscovery(this.parameterNameDiscoverer);
			args[i] = findProvidedArgument(parameter, providedArgs);
			if (args[i] != null) {
				continue;
			}
            //查看resolvers是否有支持
			if (!this.resolvers.supportsParameter(parameter)) {
				throw new IllegalStateException(formatArgumentError(parameter, "No suitable resolver"));
			}
			try {
                //支持的话就开始解析吧
				args[i] = this.resolvers.resolveArgument(parameter, mavContainer, request, this.dataBinderFactory);
			}
			catch (Exception ex) {
				....
			}
		}
		return args;
	}

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

this.resolvers的类型为HandlerMethodArgumentResolverComposite（在参数解析器章节提及）

public class HandlerMethodArgumentResolverComposite implements HandlerMethodArgumentResolver {

	@Override
	public boolean supportsParameter(MethodParameter parameter) {
		return getArgumentResolver(parameter) != null;
	}

	@Override
	@Nullable
	public Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
			NativeWebRequest webRequest, @Nullable WebDataBinderFactory binderFactory) throws Exception {

		HandlerMethodArgumentResolver resolver = getArgumentResolver(parameter);
		if (resolver == null) {
			throw new IllegalArgumentException("Unsupported parameter type [" +
					parameter.getParameterType().getName() + "]. supportsParameter should be called first.");
		}
		return resolver.resolveArgument(parameter, mavContainer, webRequest, binderFactory);
	}


    @Nullable
	private HandlerMethodArgumentResolver getArgumentResolver(MethodParameter parameter) {
		HandlerMethodArgumentResolver result = this.argumentResolverCache.get(parameter);
		if (result == null) {
            //挨个判断所有参数解析器那个支持解析这个参数
			for (HandlerMethodArgumentResolver resolver : this.argumentResolvers) {
				// 根据是否标注该注解来判断
                if (resolver.supportsParameter(parameter)) {
					result = resolver;
					this.argumentResolverCache.put(parameter, result);//找到了，resolver就缓存起来，方便稍后resolveArgument()方法使用
					break;
				}
			}
		}
		return result;
	}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

# 小结

本节描述，一个请求发送到DispatcherServlet后的具体处理流程，也就是SpringMVC的主要原理。

本节内容较多且硬核，对日后编程很有帮助，需耐心对待。视频32集

可以运行一个示例，打断点，在Debug模式下，查看程序流程。

# 33、请求处理-【源码分析】-Servlet API参数解析原理

  • WebRequest
  • ServletRequest
  • MultipartRequest
  • HttpSession
  • javax.servlet.http.PushBuilder
  • Principal
  • InputStream
  • Reader
  • HttpMethod
  • Locale
  • TimeZone
  • ZoneId

ServletRequestMethodArgumentResolver用来处理以上的参数

public class ServletRequestMethodArgumentResolver implements HandlerMethodArgumentResolver {

	@Nullable
	private static Class<?> pushBuilder;

	static {
		try {
			pushBuilder = ClassUtils.forName("javax.servlet.http.PushBuilder",
					ServletRequestMethodArgumentResolver.class.getClassLoader());
		}
		catch (ClassNotFoundException ex) {
			// Servlet 4.0 PushBuilder not found - not supported for injection
			pushBuilder = null;
		}
	}


	@Override
	public boolean supportsParameter(MethodParameter parameter) {
		Class<?> paramType = parameter.getParameterType();
		return (WebRequest.class.isAssignableFrom(paramType) ||
				ServletRequest.class.isAssignableFrom(paramType) ||
				MultipartRequest.class.isAssignableFrom(paramType) ||
				HttpSession.class.isAssignableFrom(paramType) ||
				(pushBuilder != null && pushBuilder.isAssignableFrom(paramType)) ||
				(Principal.class.isAssignableFrom(paramType) && !parameter.hasParameterAnnotations()) ||
				InputStream.class.isAssignableFrom(paramType) ||
				Reader.class.isAssignableFrom(paramType) ||
				HttpMethod.class == paramType ||
				Locale.class == paramType ||
				TimeZone.class == paramType ||
				ZoneId.class == paramType);
	}

	@Override
	public Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
			NativeWebRequest webRequest, @Nullable WebDataBinderFactory binderFactory) throws Exception {

		Class<?> paramType = parameter.getParameterType();

		// WebRequest / NativeWebRequest / ServletWebRequest
		if (WebRequest.class.isAssignableFrom(paramType)) {
			if (!paramType.isInstance(webRequest)) {
				throw new IllegalStateException(
						"Current request is not of type [" + paramType.getName() + "]: " + webRequest);
			}
			return webRequest;
		}

		// ServletRequest / HttpServletRequest / MultipartRequest / MultipartHttpServletRequest
		if (ServletRequest.class.isAssignableFrom(paramType) || MultipartRequest.class.isAssignableFrom(paramType)) {
			return resolveNativeRequest(webRequest, paramType);
		}

		// HttpServletRequest required for all further argument types
		return resolveArgument(paramType, resolveNativeRequest(webRequest, HttpServletRequest.class));
	}

	private <T> T resolveNativeRequest(NativeWebRequest webRequest, Class<T> requiredType) {
		T nativeRequest = webRequest.getNativeRequest(requiredType);
		if (nativeRequest == null) {
			throw new IllegalStateException(
					"Current request is not of type [" + requiredType.getName() + "]: " + webRequest);
		}
		return nativeRequest;
	}

	@Nullable
	private Object resolveArgument(Class<?> paramType, HttpServletRequest request) throws IOException {
		if (HttpSession.class.isAssignableFrom(paramType)) {
			HttpSession session = request.getSession();
			if (session != null && !paramType.isInstance(session)) {
				throw new IllegalStateException(
						"Current session is not of type [" + paramType.getName() + "]: " + session);
			}
			return session;
		}
		else if (pushBuilder != null && pushBuilder.isAssignableFrom(paramType)) {
			return PushBuilderDelegate.resolvePushBuilder(request, paramType);
		}
		else if (InputStream.class.isAssignableFrom(paramType)) {
			InputStream inputStream = request.getInputStream();
			if (inputStream != null && !paramType.isInstance(inputStream)) {
				throw new IllegalStateException(
						"Request input stream is not of type [" + paramType.getName() + "]: " + inputStream);
			}
			return inputStream;
		}
		else if (Reader.class.isAssignableFrom(paramType)) {
			Reader reader = request.getReader();
			if (reader != null && !paramType.isInstance(reader)) {
				throw new IllegalStateException(
						"Request body reader is not of type [" + paramType.getName() + "]: " + reader);
			}
			return reader;
		}
		else if (Principal.class.isAssignableFrom(paramType)) {
			Principal userPrincipal = request.getUserPrincipal();
			if (userPrincipal != null && !paramType.isInstance(userPrincipal)) {
				throw new IllegalStateException(
						"Current user principal is not of type [" + paramType.getName() + "]: " + userPrincipal);
			}
			return userPrincipal;
		}
		else if (HttpMethod.class == paramType) {
			return HttpMethod.resolve(request.getMethod());
		}
		else if (Locale.class == paramType) {
			return RequestContextUtils.getLocale(request);
		}
		else if (TimeZone.class == paramType) {
			TimeZone timeZone = RequestContextUtils.getTimeZone(request);
			return (timeZone != null ? timeZone : TimeZone.getDefault());
		}
		else if (ZoneId.class == paramType) {
			TimeZone timeZone = RequestContextUtils.getTimeZone(request);
			return (timeZone != null ? timeZone.toZoneId() : ZoneId.systemDefault());
		}

		// Should never happen...
		throw new UnsupportedOperationException("Unknown parameter type: " + paramType.getName());
	}


	/**
	 * Inner class to avoid a hard dependency on Servlet API 4.0 at runtime.
	 */
	private static class PushBuilderDelegate {

		@Nullable
		public static Object resolvePushBuilder(HttpServletRequest request, Class<?> paramType) {
			PushBuilder pushBuilder = request.newPushBuilder();
			if (pushBuilder != null && !paramType.isInstance(pushBuilder)) {
				throw new IllegalStateException(
						"Current push builder is not of type [" + paramType.getName() + "]: " + pushBuilder);
			}
			return pushBuilder;

		}
	}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141

用例：

@Controller
public class RequestController {

    @GetMapping("/goto")
    public String goToPage(HttpServletRequest request){

        request.setAttribute("msg","成功了...");
        request.setAttribute("code",200);
        return "forward:/success";  //转发到  /success请求
    }
}
1
2
3
4
5
6
7
8
9
10
11

# 34、请求处理-【源码分析】-Model、Map原理

复杂参数：

  • Map

  • Model（map、model里面的数据会被放在request的请求域 request.setAttribute）

  • Errors/BindingResult

  • RedirectAttributes（ 重定向携带数据）

  • ServletResponse（response）

  • SessionStatus

  • UriComponentsBuilder

  • ServletUriComponentsBuilder

用例：

@GetMapping("/params")
public String testParam(Map<String,Object> map,
                        Model model,
                        HttpServletRequest request,
                        HttpServletResponse response){
    //下面三位都是可以给request域中放数据
    map.put("hello","world666");
    model.addAttribute("world","hello666");
    request.setAttribute("message","HelloWorld");

    Cookie cookie = new Cookie("c1","v1");
    response.addCookie(cookie);
    return "forward:/success";
}

@ResponseBody
@GetMapping("/success")
public Map success(@RequestAttribute(value = "msg",required = false) String msg,
                   @RequestAttribute(value = "code",required = false)Integer code,
                   HttpServletRequest request){
    Object msg1 = request.getAttribute("msg");

    Map<String,Object> map = new HashMap<>();
    Object hello = request.getAttribute("hello");//得出testParam方法赋予的值 world666
    Object world = request.getAttribute("world");//得出testParam方法赋予的值 hello666
    Object message = request.getAttribute("message");//得出testParam方法赋予的值 HelloWorld

    map.put("reqMethod_msg",msg1);
    map.put("annotation_msg",msg);
    map.put("hello",hello);
    map.put("world",world);
    map.put("message",message);

    return map;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

  • Map<String,Object> map

  • Model model

  • HttpServletRequest request

上面三位都是可以给request域中放数据，用request.getAttribute()获取

接下来我们看看，Map<String,Object> map与Model model用什么参数处理器。

Map<String,Object> map参数用MapMethodProcessor处理：

public class MapMethodProcessor implements HandlerMethodArgumentResolver, HandlerMethodReturnValueHandler {

	@Override
	public boolean supportsParameter(MethodParameter parameter) {
		return (Map.class.isAssignableFrom(parameter.getParameterType()) &&
				parameter.getParameterAnnotations().length == 0);
	}

	@Override
	@Nullable
	public Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
			NativeWebRequest webRequest, @Nullable WebDataBinderFactory binderFactory) throws Exception {

		Assert.state(mavContainer != null, "ModelAndViewContainer is required for model exposure");
		return mavContainer.getModel();
	}

    ...

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

mavContainer.getModel()如下：

public class ModelAndViewContainer {

    ...

	private final ModelMap defaultModel = new BindingAwareModelMap();

	@Nullable
	private ModelMap redirectModel;

    ...

	public ModelMap getModel() {
		if (useDefaultModel()) {
			return this.defaultModel;
		}
		else {
			if (this.redirectModel == null) {
				this.redirectModel = new ModelMap();
			}
			return this.redirectModel;
		}
	}

    private boolean useDefaultModel() {
		return (!this.redirectModelScenario || (this.redirectModel == null && !this.ignoreDefaultModelOnRedirect));
	}
    ...

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

Model model用ModelMethodProcessor处理：

public class ModelMethodProcessor implements HandlerMethodArgumentResolver, HandlerMethodReturnValueHandler {

	@Override
	public boolean supportsParameter(MethodParameter parameter) {
		return Model.class.isAssignableFrom(parameter.getParameterType());
	}

	@Override
	@Nullable
	public Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
			NativeWebRequest webRequest, @Nullable WebDataBinderFactory binderFactory) throws Exception {

		Assert.state(mavContainer != null, "ModelAndViewContainer is required for model exposure");
		return mavContainer.getModel();
	}
    ...
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

return mavContainer.getModel();这跟MapMethodProcessor的一致

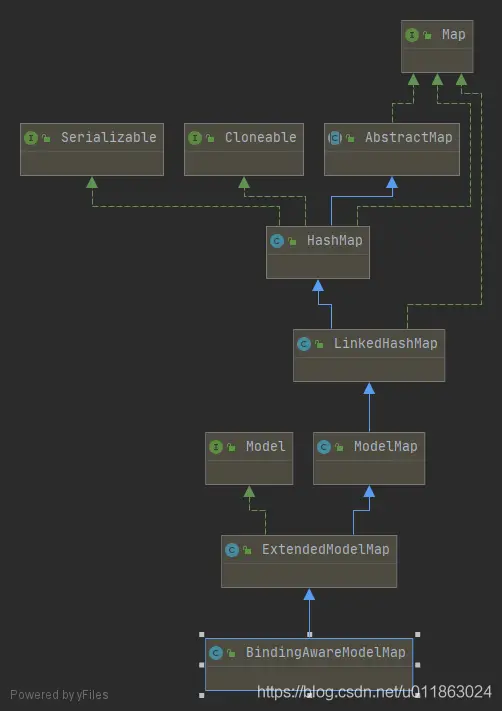

20210205010247689

Model也是另一种意义的Map。

接下来看看Map<String,Object> map与Model model值是如何做到用request.getAttribute()获取的。

众所周知，所有的数据都放在 ModelAndView包含要去的页面地址View，还包含Model数据。

先看ModelAndView接下来是如何处理的？

public class DispatcherServlet extends FrameworkServlet {

    ...

	protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
		...

		try {
			ModelAndView mv = null;

            ...

			// Actually invoke the handler.
			mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

            ...

			}
			catch (Exception ex) {
				dispatchException = ex;
			}
			catch (Throwable err) {
				// As of 4.3, we're processing Errors thrown from handler methods as well,
				// making them available for @ExceptionHandler methods and other scenarios.
				dispatchException = new NestedServletException("Handler dispatch failed", err);
			}
        	//处理分发结果
			processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
		}
        ...

	}

	private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
			@Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
			@Nullable Exception exception) throws Exception {
        ...

		// Did the handler return a view to render?
		if (mv != null && !mv.wasCleared()) {
			render(mv, request, response);
			...
		}
		...
	}

	protected void render(ModelAndView mv, HttpServletRequest request, HttpServletResponse response) throws Exception {
		...

		View view;
		String viewName = mv.getViewName();
		if (viewName != null) {
			// We need to resolve the view name.
			view = resolveViewName(viewName, mv.getModelInternal(), locale, request);
			if (view == null) {
				throw new ServletException("Could not resolve view with name '" + mv.getViewName() +
						"' in servlet with name '" + getServletName() + "'");
			}
		}
		else {
			// No need to lookup: the ModelAndView object contains the actual View object.
			view = mv.getView();
			if (view == null) {
				throw new ServletException("ModelAndView [" + mv + "] neither contains a view name nor a " +
						"View object in servlet with name '" + getServletName() + "'");
			}
		}
        //重点
		view.render(mv.getModelInternal(), request, response);

        ...
	}

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74

在Debug模式下，view属为InternalResourceView类。

public class InternalResourceView extends AbstractUrlBasedView {

 	@Override//该方法在AbstractView，AbstractUrlBasedView继承了AbstractView
	public void render(@Nullable Map<String, ?> model, HttpServletRequest request,
			HttpServletResponse response) throws Exception {

        ...
        // 这个mergeModel将原本model中的数据存放进map
		Map<String, Object> mergedModel = createMergedOutputModel(model, request, response);
		prepareResponse(request, response);

        //看下一个方法实现
		renderMergedOutputModel(mergedModel, getRequestToExpose(request), response);
	}

    @Override
	protected void renderMergedOutputModel(
			Map<String, Object> model, HttpServletRequest request, HttpServletResponse response) throws Exception {

		// Expose the model object as request attributes.
        // 暴露模型作为请求域属性
		exposeModelAsRequestAttributes(model, request);//<---重点

		// Expose helpers as request attributes, if any.
		exposeHelpers(request);

		// Determine the path for the request dispatcher.
		String dispatcherPath = prepareForRendering(request, response);

		// Obtain a RequestDispatcher for the target resource (typically a JSP).
		RequestDispatcher rd = getRequestDispatcher(request, dispatcherPath);

        ...
	}

    //该方法在AbstractView，AbstractUrlBasedView继承了AbstractView
    protected void exposeModelAsRequestAttributes(Map<String, Object> model,
			HttpServletRequest request) throws Exception {

		model.forEach((name, value) -> {
			if (value != null) {
                // 将数据存入request作用域中
				request.setAttribute(name, value);
			}
			else {
				request.removeAttribute(name);
			}
		});
	}

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

exposeModelAsRequestAttributes方法看出，Map<String,Object> map，Model model这两种类型数据可以给request域中放数据，用request.getAttribute()获取。

# 35、请求处理-【源码分析】-自定义参数绑定原理

@RestController
public class ParameterTestController {

    /**
     * 数据绑定：页面提交的请求数据（GET、POST）都可以和对象属性进行绑定
     * @param person
     * @return
     */
    @PostMapping("/saveuser")
    public Person saveuser(Person person){
        return person;
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
/**
 *     姓名： <input name="userName"/> <br/>
 *     年龄： <input name="age"/> <br/>
 *     生日： <input name="birth"/> <br/>
 *     宠物姓名：<input name="pet.name"/><br/>
 *     宠物年龄：<input name="pet.age"/>
 */
@Data
public class Person {

    private String userName;
    private Integer age;
    private Date birth;
    private Pet pet;

}

@Data
public class Pet {

    private String name;
    private String age;

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

封装过程用到ServletModelAttributeMethodProcessor

public class ServletModelAttributeMethodProcessor extends ModelAttributeMethodProcessor {

    @Override//本方法在ModelAttributeMethodProcessor类，
	public boolean supportsParameter(MethodParameter parameter) {
		return (parameter.hasParameterAnnotation(ModelAttribute.class) ||
				(this.annotationNotRequired && !BeanUtils.isSimpleProperty(parameter.getParameterType())));
	}

	@Override
	@Nullable//本方法在ModelAttributeMethodProcessor类，
	public final Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
			NativeWebRequest webRequest, @Nullable WebDataBinderFactory binderFactory) throws Exception {

		...

		String name = ModelFactory.getNameForParameter(parameter);
		ModelAttribute ann = parameter.getParameterAnnotation(ModelAttribute.class);
		if (ann != null) {
			mavContainer.setBinding(name, ann.binding());
		}

		Object attribute = null;
		BindingResult bindingResult = null;

		if (mavContainer.containsAttribute(name)) {
			attribute = mavContainer.getModel().get(name);
		}
		else {
			// Create attribute instance
			try {
				attribute = createAttribute(name, parameter, binderFactory, webRequest);
			}
			catch (BindException ex) {
				...
			}
		}

		if (bindingResult == null) {
			// Bean property binding and validation;
			// skipped in case of binding failure on construction.
			WebDataBinder binder = binderFactory.createBinder(webRequest, attribute, name);
			if (binder.getTarget() != null) {
				if (!mavContainer.isBindingDisabled(name)) {
                    //web数据绑定器，将请求参数的值绑定到指定的JavaBean里面**
					bindRequestParameters(binder, webRequest);
				}
				validateIfApplicable(binder, parameter);
				if (binder.getBindingResult().hasErrors() && isBindExceptionRequired(binder, parameter)) {
					throw new BindException(binder.getBindingResult());
				}
			}
			// Value type adaptation, also covering java.util.Optional
			if (!parameter.getParameterType().isInstance(attribute)) {
				attribute = binder.convertIfNecessary(binder.getTarget(), parameter.getParameterType(), parameter);
			}
			bindingResult = binder.getBindingResult();
		}

		// Add resolved attribute and BindingResult at the end of the model
		Map<String, Object> bindingResultModel = bindingResult.getModel();
		mavContainer.removeAttributes(bindingResultModel);
		mavContainer.addAllAttributes(bindingResultModel);

		return attribute;
	}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66

WebDataBinder 利用它里面的 Converters 将请求数据转成指定的数据类型。再次封装到JavaBean中

在过程当中，用到GenericConversionService：在设置每一个值的时候，找它里面的所有converter那个可以将这个数据类型（request带来参数的字符串）转换到指定的类型

# 36、请求处理-【源码分析】-自定义Converter原理

未来我们可以给WebDataBinder里面放自己的Converter；

下面演示将字符串“啊猫,3”转换成Pet对象。

//1、WebMvcConfigurer定制化SpringMVC的功能
@Bean
public WebMvcConfigurer webMvcConfigurer(){
    return new WebMvcConfigurer() {

        @Override
        public void addFormatters(FormatterRegistry registry) {
            registry.addConverter(new Converter<String, Pet>() {

                @Override
                public Pet convert(String source) {
                    // 啊猫,3
                    if(!StringUtils.isEmpty(source)){
                        Pet pet = new Pet();
                        String[] split = source.split(",");
                        pet.setName(split[0]);
                        pet.setAge(Integer.parseInt(split[1]));
                        return pet;
                    }
                    return null;
                }
            });
        }
    };
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
编辑 (opens new window)
上次更新: 2024/05/30, 07:49:34
六、SpringBoot的Web场景
Cookie详解

← Cookie详解→

最近更新
01
tensor比较大小函数
05-30
02
Large Language Models can Deliver Accurate and Interpretable Time Series Anomaly Detection
05-27
03
半监督学习经典方法 Π-model、Mean Teacher
04-10
更多文章>
Theme by Vdoing | Copyright © 2023-2024 Ranger | MIT License
