二十一、SpringBoot场景整合-Web安全

  • Apache Shiro
  • Spring Security
  • 自研:利用Filter机制进行拦截

# Spring Security

# 1. 安全架构

# 1. 认证:Authentication

who are you?

登录系统,用户系统

类似火车闸机进站

# 2. 授权:Authorization

what are you allowed to do?

权限管理,用户授权

类似商务座、一等座、二等座

# 3. 攻击防护

  • XSS(Cross-site scripting)
  • CSRF(Cross-site request forgery)
  • CORS(Cross-Origin Resource Sharing)
  • SQL注入
  • ...

防止用户对系统进行破坏

# 扩展. 权限模型

# 1. RBAC(Role Based Access Controll)

基于用户的权限控制

  • 用户(t_user)
  • id,username,password,xxx

  • 1,zhangsan

  • 2,lisi

  • 用户_角色(t_user_role)【N对N关系需要中间表】
  • zhangsan, admin

  • zhangsan,common_user

  • lisi, hr

  • lisi, common_user

  • 角色(t_role)
  • id,role_name

  • admin

  • hr

  • common_user

  • 角色_权限(t_role_perm)
  • admin, 文件r

  • admin, 文件w

  • admin, 文件执行

  • admin, 订单query,create,xxx

  • hr, 文件r

  • 权限(t_permission)
  • id,perm_id

  • 文件 r,w,x

  • 订单 query,create,xxx

# 2. ACL(Access Controll List)

可访问列表,直接记录每个用户有哪些权限

直接用户和权限挂钩

  • 用户(t_user)
  • zhangsan

  • lisi

  • 用户_权限(t_user_perm)
  • zhangsan,文件 r

  • zhangsan,文件 x

  • zhangsan,订单 query

  • 权限(t_permission)
  • id,perm_id

  • 文件 r,w,x

  • 订单 query,create,xxx

@Secured("文件 r")
public void readFile(){
    //读文件
}
1
2
3
4

# 2. Spring Security 原理

# 1. 过滤器链架构

Spring Security利用 FilterChainProxy 封装一系列拦截器链,实现各种安全拦截功能

Servlet三大组件:Servlet、Filter、Listener


# 2. FilterChainProxy

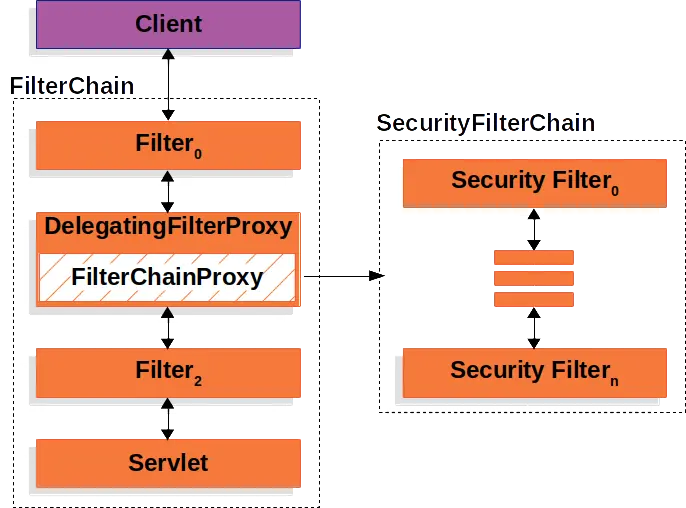

# 3. SecurityFilterChain


# 3. 使用

# 1. HttpSecurity

@Configuration
@Order(SecurityProperties.BASIC_AUTH_ORDER - 10)
public class ApplicationConfigurerAdapter extends WebSecurityConfigurerAdapter {
  @Override
  protected void configure(HttpSecurity http) throws Exception {
    http.antMatcher("/match1/**")
      .authorizeRequests()
        .antMatchers("/match1/user").hasRole("USER")
        .antMatchers("/match1/spam").hasRole("SPAM")
        .anyRequest().isAuthenticated();
  }
}
1
2
3
4
5
6
7
8
9
10
11
12

# 2. MethodSecurity

@SpringBootApplication
@EnableGlobalMethodSecurity(securedEnabled = true)
public class SampleSecureApplication {
}

@Service
public class MyService {

  @Secured("ROLE_USER")
  public String secure() {
    return "Hello Security";
  }

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14

核心

  • WebSecurityConfigurerAdapter:设置有哪些角色、权限、规则

  • @EnableGlobalMethodSecurity: 开启全局方法安全配置

    • @Secured
    • @PreAuthorize:授权前配置
    • @PostAuthorize:授权后配置
  • UserDetailService: 去数据库查询用户详细信息的service(用户基本信息、用户角色、用户权限)

# 4. 实战

# 1. 引入依赖

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-redis</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-security</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
    <groupId>org.mybatis.spring.boot</groupId>
    <artifactId>mybatis-spring-boot-starter</artifactId>
    <version>3.0.0</version>
</dependency>

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-devtools</artifactId>
    <scope>runtime</scope>
    <optional>true</optional>
</dependency>
<dependency>
    <groupId>com.mysql</groupId>
    <artifactId>mysql-connector-j</artifactId>
    <scope>runtime</scope>
</dependency>
<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <optional>true</optional>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-test</artifactId>
    <scope>test</scope>
</dependency>
<dependency>
    <groupId>org.thymeleaf.extras</groupId>
    <artifactId>thymeleaf-extras-springsecurity6</artifactId>
    <!-- Temporary explicit version to fix Thymeleaf bug -->
    <version>3.1.1.RELEASE</version>
</dependency>
<dependency>
    <groupId>org.springframework.security</groupId>
    <artifactId>spring-security-test</artifactId>
    <scope>test</scope>
</dependency>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

自动配置原理

/**
 * Security场景的自动配置类:
 * SecurityAutoConfiguration、SpringBootWebSecurityConfiguration、SecurityFilterAutoConfiguration、
 * 1、security的所有配置在 SecurityProperties: 以spring.security开头
 * 2、默认SecurityFilterChain组件:
 *   - 所有请求都需要认证(登录)
 *   - 开启表单登录: spring security提供一个默认登录页,未经登录的所有请求都需要登录
 *   - httpbasic方式登录
 * 3、@EnableWebSecurity 生效
 *   - WebSecurityConfiguration生效:web安全配置
 *   - HttpSecurityConfiguration生效:http安全规则
 *   - @EnableGlobalAuthentication生效:全局认证生效
 *     - AuthenticationConfiguration:认证配置
 */
1
2
3
4
5
6
7
8
9
10
11
12
13
14

# 2. 页面

# 首页

<p>Click <a th:href="@{/hello}">here</a> to see a greeting.</p>
1

# Hello页

<h1>Hello</h1>
1

# 登录页

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml" xmlns:th="https://www.thymeleaf.org">
  <head>
    <title>Spring Security Example</title>
  </head>
  <body>
    <div th:if="${param.error}">Invalid username and password.</div>
    <div th:if="${param.logout}">You have been logged out.</div>
    <form th:action="@{/login}" method="post">
      <div>
        <label> User Name : <input type="text" name="username" /> </label>
      </div>
      <div>
        <label> Password: <input type="password" name="password" /> </label>
      </div>
      <div><input type="submit" value="Sign In" /></div>
    </form>
  </body>
</html>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

# 3. 配置类

# 视图控制

package com.example.securingweb;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.ViewControllerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

@Configuration
public class MvcConfig implements WebMvcConfigurer {

    public void addViewControllers(ViewControllerRegistry registry) {
        registry.addViewController("/home").setViewName("index");
        registry.addViewController("/").setViewName("index");
        registry.addViewController("/hello").setViewName("hello");
        registry.addViewController("/login").setViewName("login");
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

# Security配置

package com.atguigu.security.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.provisioning.InMemoryUserDetailsManager;
import org.springframework.security.web.SecurityFilterChain;

/**
 * @author lfy
 * @Description
 * @create 2023-03-08 16:54
 */
@Configuration
@EnableWebSecurity
public class WebSecurityConfig {

    @Bean
    public SecurityFilterChain securityFilterChain(HttpSecurity http) throws Exception {


        http
                .authorizeHttpRequests((requests) -> requests
                        .requestMatchers("/", "/home").permitAll()
                        .anyRequest().authenticated()
                )
                .formLogin((form) -> form
                        .loginPage("/login")
                        .permitAll()
                )
                .logout((logout) -> logout.permitAll());

        return http.build();
    }

    @Bean
    public UserDetailsService userDetailsService() {
        UserDetails user =
                User.withDefaultPasswordEncoder()
                        .username("admin")
                        .password("admin")
                        .roles("USER")
                        .build();

        return new InMemoryUserDetailsManager(user);
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

# 4. 改造Hello页

<!DOCTYPE html>
<html
  xmlns="http://www.w3.org/1999/xhtml"
  xmlns:th="https://www.thymeleaf.org"
  xmlns:sec="https://www.thymeleaf.org/thymeleaf-extras-springsecurity6"
>
  <head>
    <title>Hello World!</title>
  </head>
  <body>
    <h1 th:inline="text">
      Hello <span th:remove="tag" sec:authentication="name">thymeleaf</span>!
    </h1>
    <form th:action="@{/logout}" method="post">
      <input type="submit" value="Sign Out" />
    </form>
  </body>
</html>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
