十、SpringBootWeb开发-嵌入式容器

Servlet容器:管理、运行Servlet组件(Servlet、Filter、Listener)的环境,一般指服务器(Tomcat)

# 1. 自动配置原理

  • SpringBoot 默认嵌入Tomcat作为Servlet容器。
  • 自动配置类是ServletWebServerFactoryAutoConfiguration,EmbeddedWebServerFactoryCustomizerAutoConfiguration
  • 自动配置类开始分析功能。xxxxAutoConfiguration
@AutoConfiguration
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE)
@ConditionalOnClass(ServletRequest.class)
@ConditionalOnWebApplication(type = Type.SERVLET)
@EnableConfigurationProperties(ServerProperties.class)
@Import({ ServletWebServerFactoryAutoConfiguration.BeanPostProcessorsRegistrar.class,
		ServletWebServerFactoryConfiguration.EmbeddedTomcat.class,
		ServletWebServerFactoryConfiguration.EmbeddedJetty.class,
		ServletWebServerFactoryConfiguration.EmbeddedUndertow.class })
public class ServletWebServerFactoryAutoConfiguration {

}
1
2
3
4
5
6
7
8
9
10
11
12
  1. ServletWebServerFactoryAutoConfiguration 自动配置了嵌入式容器场景

  2. 绑定了ServerProperties配置类,所有和服务器有关的配置 server

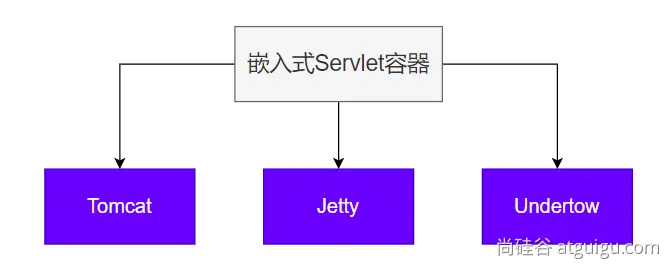

  3. ServletWebServerFactoryAutoConfiguration 导入了 嵌入式的三大服务器 Tomcat、Jetty、Undertow

    1. 导入 Tomcat、Jetty、Undertow 都有条件注解。系统中有这个类才行(也就是导了包)
    2. 默认 Tomcat配置生效。给容器中放 TomcatServletWebServerFactory
    3. 都给容器中 ServletWebServerFactory放了一个 web服务器工厂(造web服务器的)
    4. web服务器工厂 都有一个功能,getWebServer获取web服务器
    5. TomcatServletWebServerFactory 创建了 tomcat。
  4. ServletWebServerFactory 什么时候会创建 webServer出来。

  5. ServletWebServerApplicationContextioc容器,启动的时候会调用创建web服务器

  6. Spring**容器刷新(启动)**的时候,会预留一个时机,刷新子容器。onRefresh()

  7. refresh() 容器刷新,其中十二大步的刷新子容器会调用 onRefresh();

@Override
protected void onRefresh() {
    super.onRefresh();
    try {
        createWebServer();
    }
    catch (Throwable ex) {
        throw new ApplicationContextException("Unable to start web server", ex);
    }
}
1
2
3
4
5
6
7
8
9
10

Web场景的Spring容器启动,在onRefresh的时候,会调用创建web服务器的方法。

Web服务器的创建是通过WebServerFactory搞定的。容器中又会根据导了什么包条件注解,启动相关的 服务器配置,默认EmbeddedTomcat会给容器中放一个 TomcatServletWebServerFactory,导致项目启动,自动创建出Tomcat。

# 2. 自定义


切换服务器;

<properties>
    <servlet-api.version>3.1.0</servlet-api.version>
</properties>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
    <exclusions>
        <!-- Exclude the Tomcat dependency -->
        <exclusion>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
        </exclusion>
    </exclusions>
</dependency>
<!-- Use Jetty instead -->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-jetty</artifactId>
</dependency>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

# 3. 最佳实践

用法:

  • 修改server下的相关配置就可以修改服务器参数
  • 通过给容器中放一个ServletWebServerFactory,来禁用掉SpringBoot默认放的服务器工厂,实现自定义嵌入任意服务器。
